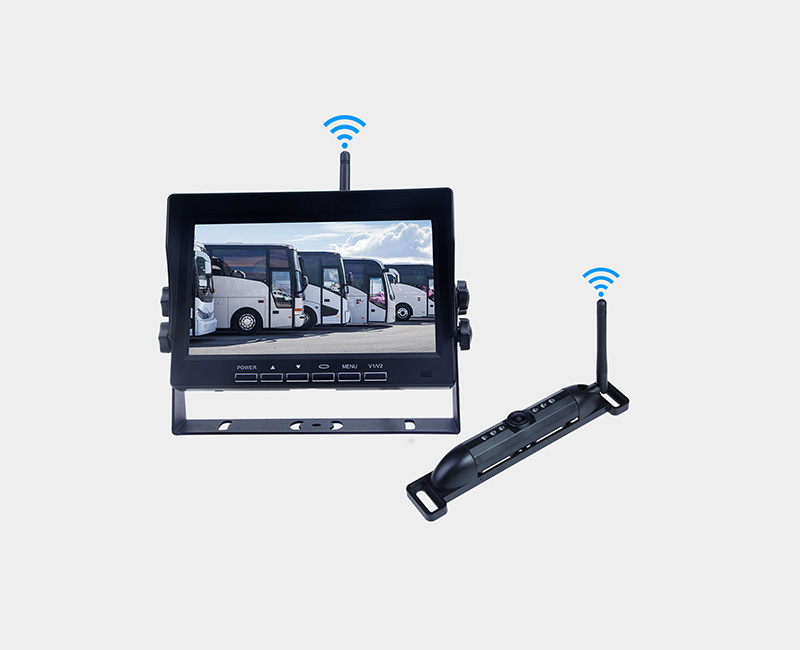

7inch Digital Wireless System

Model Number: BDW-709-3

Color & Material: Black

Brief Introduction: Digital wireless rearview system

Get quotes

Convert any reversing camera with a standard mini 4 pin connector into a wireless camera with this universal transmitter and receiver kit

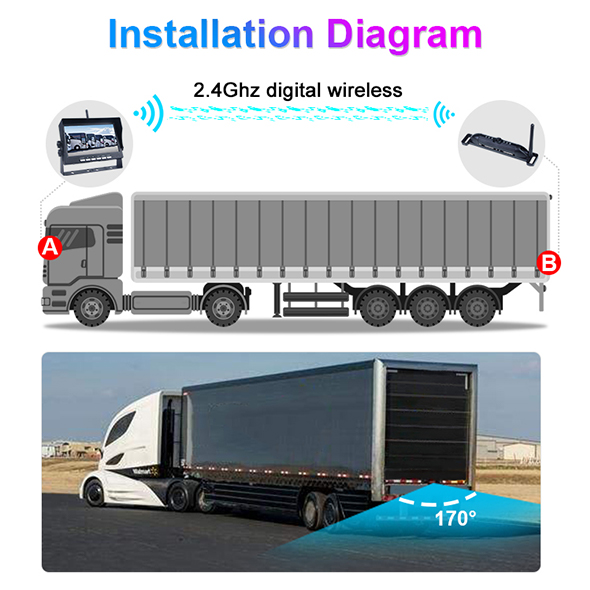

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end
The transmitter also includes a handy pass through for the power so you can connect it inline with your camera
Wireless transmitter with male phono plug and male 3.5mm power plug for supplying power to the camera
Wireless receiver with male phono plug for connection to monitor

PRODUCT DESCRIPTION

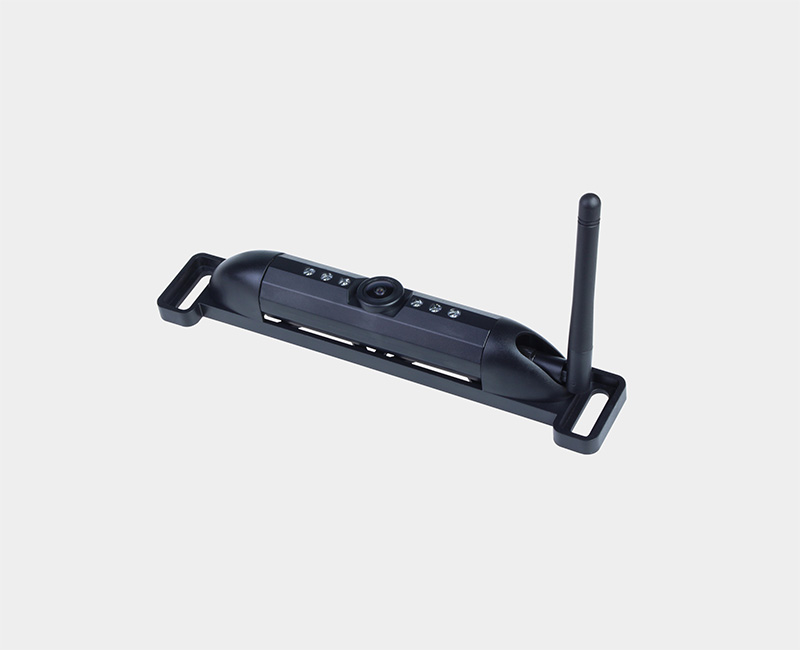

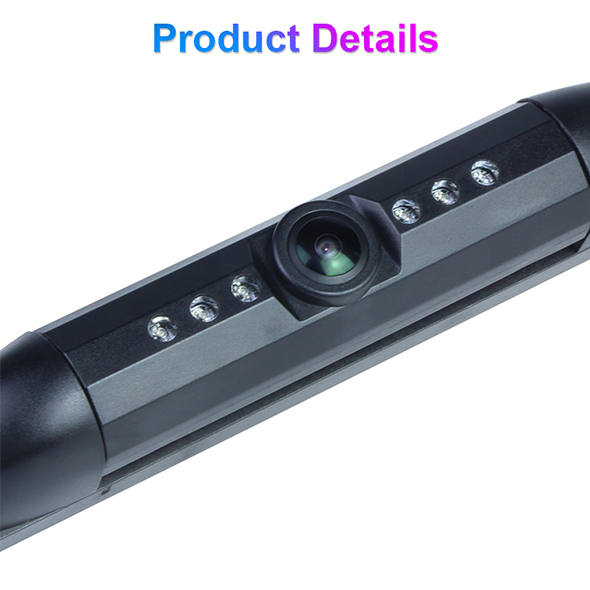

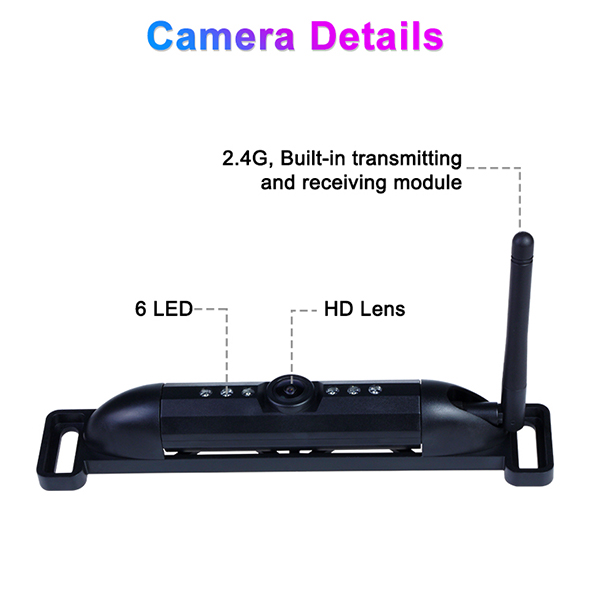

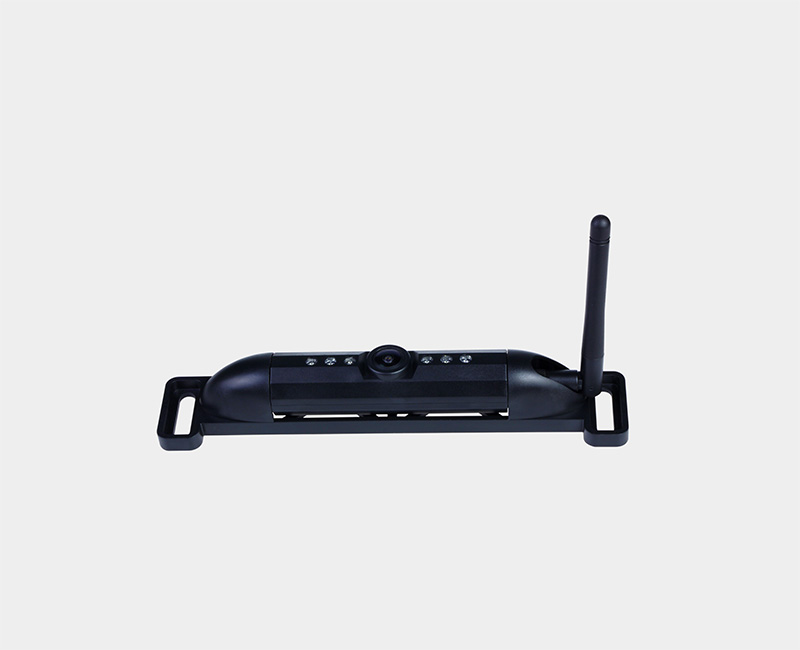

Camera Specification
Image sensor		H65
Effective pixels	Pixels	1296*732
Pixel size	um	3.0*3.0
Minimum illumination	Lux	0(IR ON)/5(IR OFF)


Color pattern		Color
IR-CUT		Support
audio compression		ADPCM


video compression		H.264
Lens distortion correction		Support
operating frequency	MHz	2400－2483.5
Data bandwidth	bps	4M(max)
Modulation/demodulation mode		GFSK
transmitting power	dBm	20(max)
The code way		Auto&Manual
Antenna impedance matching	Ω	50
Unobstructed Effective Range	m	>300
operating voltage	V	DC 9~36
operating current	A	0.3@DC12V(max)
operating temperature	℃	–10～+65
storage temperature	℃	–20～+85


operating humidity	RH	15%~85%


storage humidity	RH	5%~95%

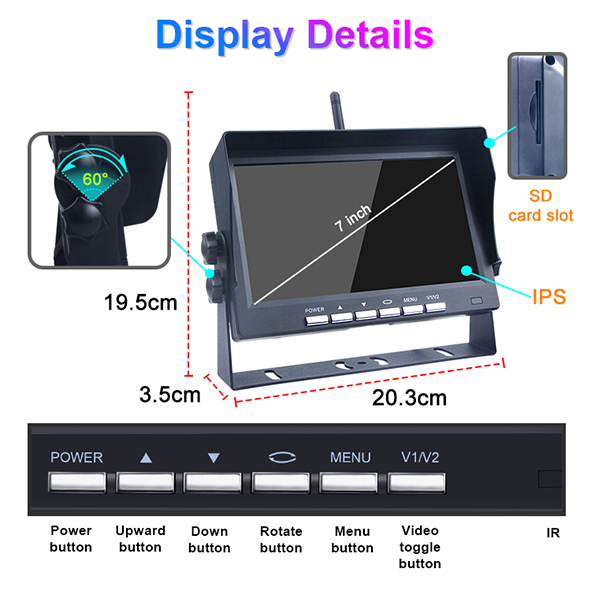

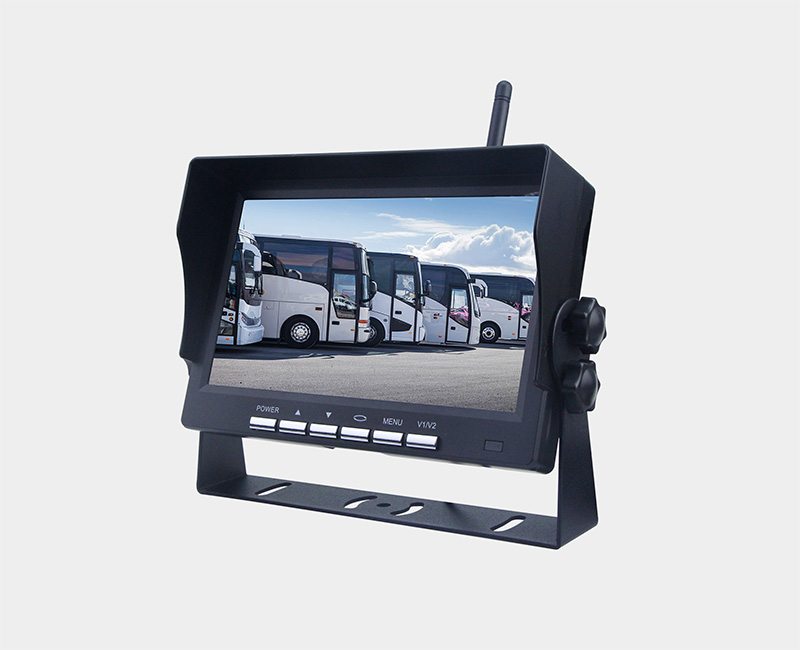

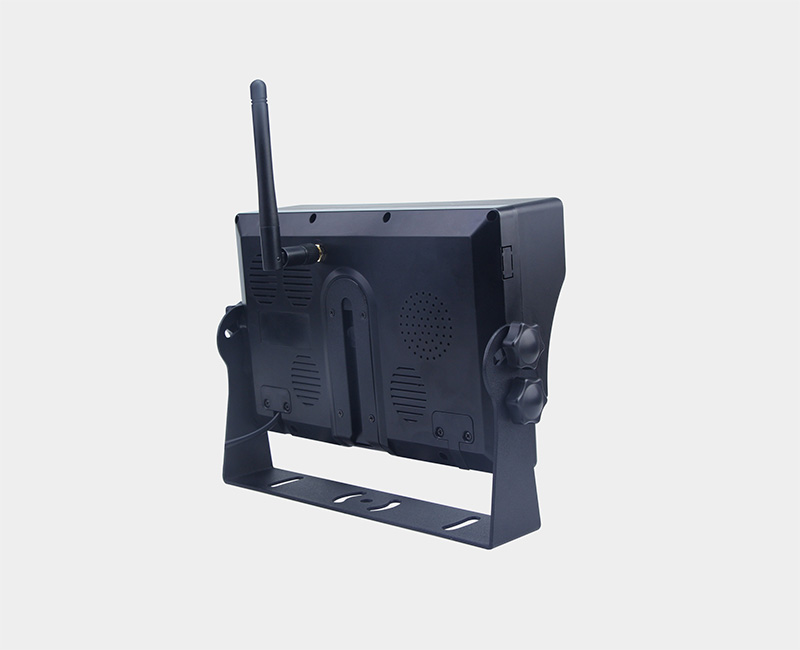

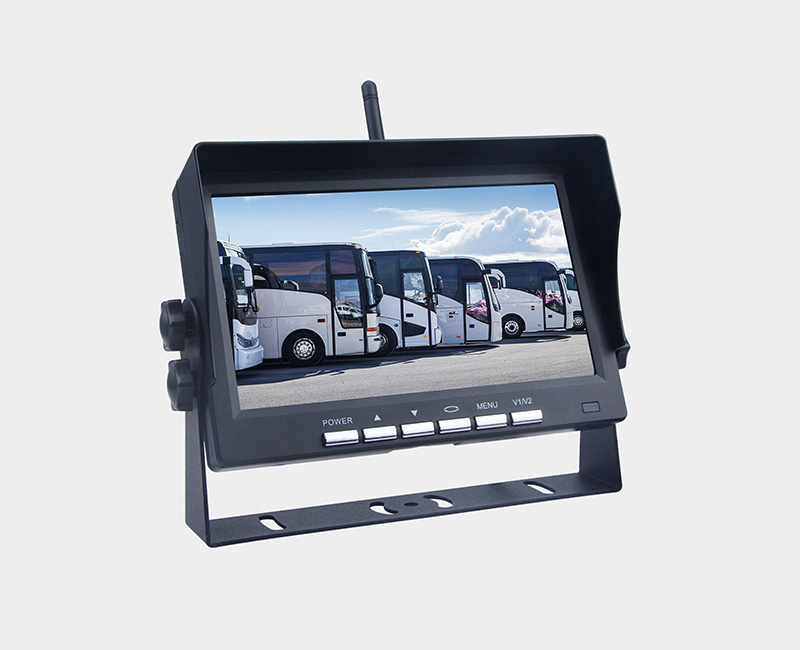

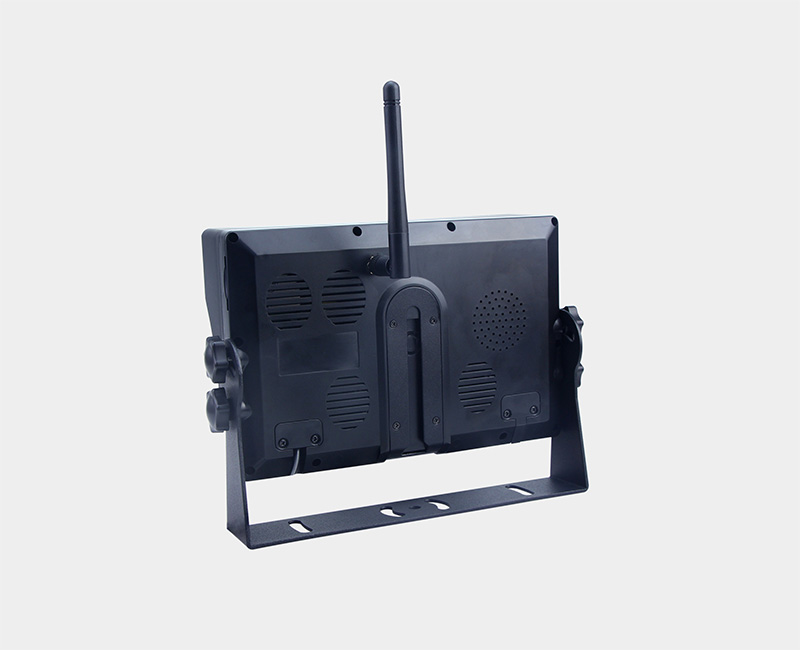

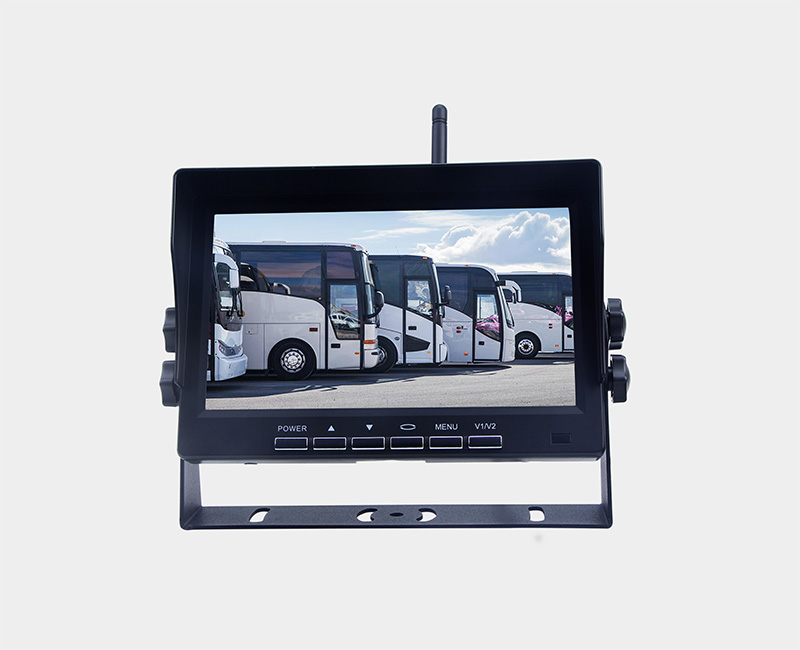

Monitor Specification
Video frame rate	fps	30(max)
Video transmission resolution	Pixels	1280*720
screen resolution	Pixels	1024*600


screen brightness	CD/M2	400
screen type		7 inch IPS
video formats		Auto
audio decoding		ADPCM


video decoding		H.264


operating frequency	MHz	2400－2483.5
Data bandwidth	bps	4M(max)
Modulation/demodulation mode		GFSK
receiving sensitivity	dBm	-85(max)
Number of camera access	Set	1~4
The code way		Manual
data encryption	Bit	AES128
Antenna impedance matching	Ω	50
Unobstructed transmission distance	m	>300
operating voltage	V	DC 9~36
operating current	A	0.5@DC12V
Operation Temperature	℃	–10～+65
Storage Temperature	℃	–20～+85
Operation Humidity	RH	15%~85%
Storage Humidity	RH	5%~95%
