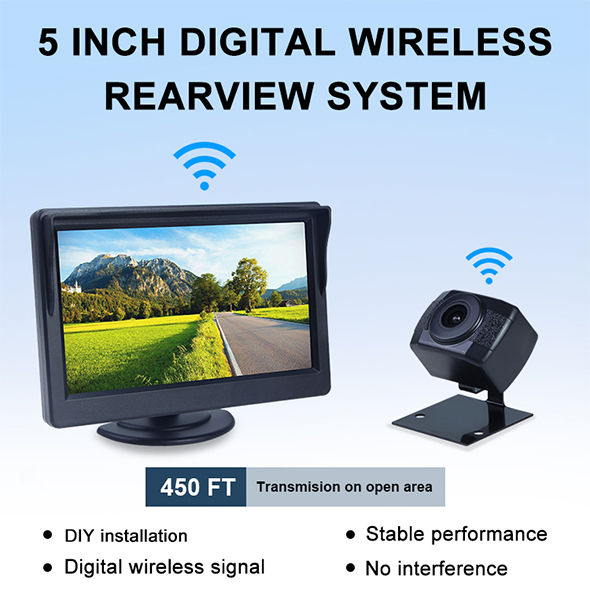

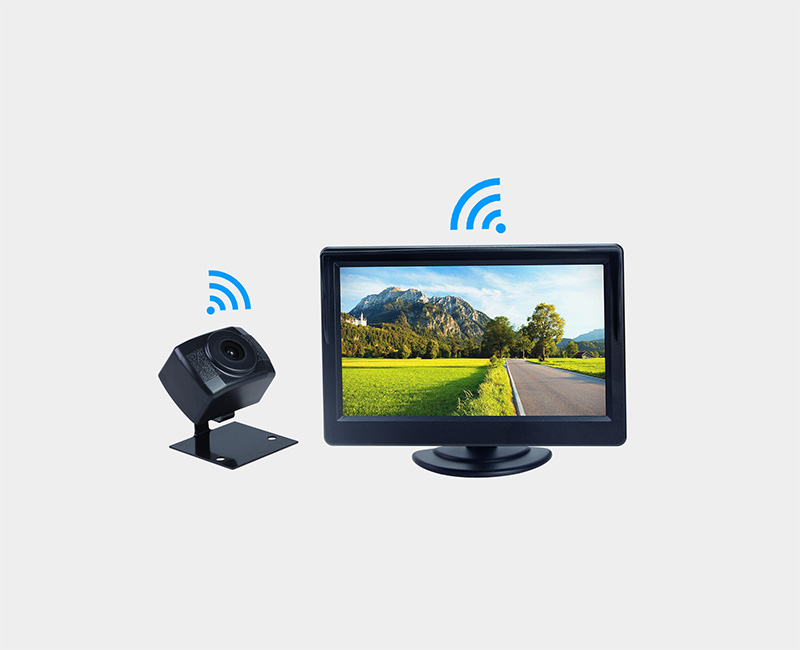

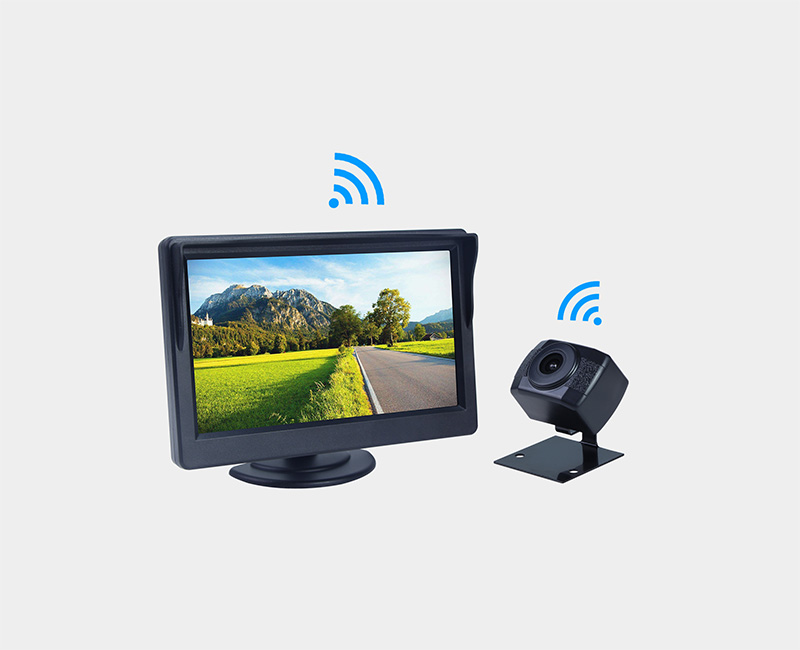

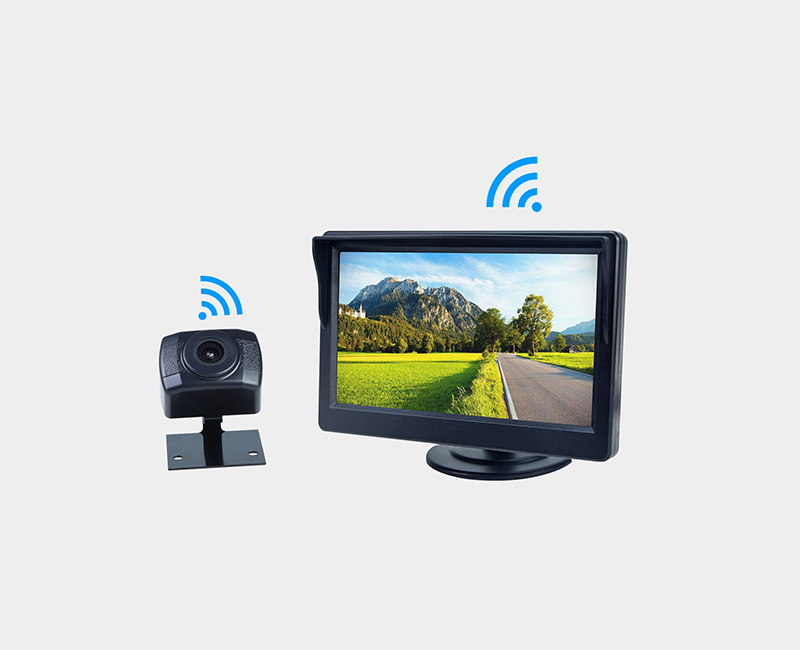

5inch Digital Wireless System

Model Number: BDW-500-2

Color & Material: Black

Brief Introduction: Digital wireless rearview system

Get quotes

● Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit

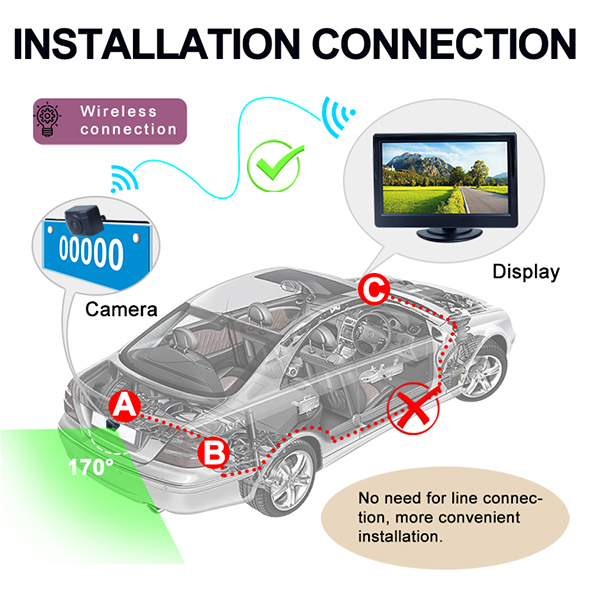

● Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end

● The transmitter also includes a handy pass through for the power so you can connect it inline with your camera

● Wireless transmitter with male phono plug and male 3.5mm power plug for supplying power to the camera

● Wireless receiver with male phono plug for connection to monitor

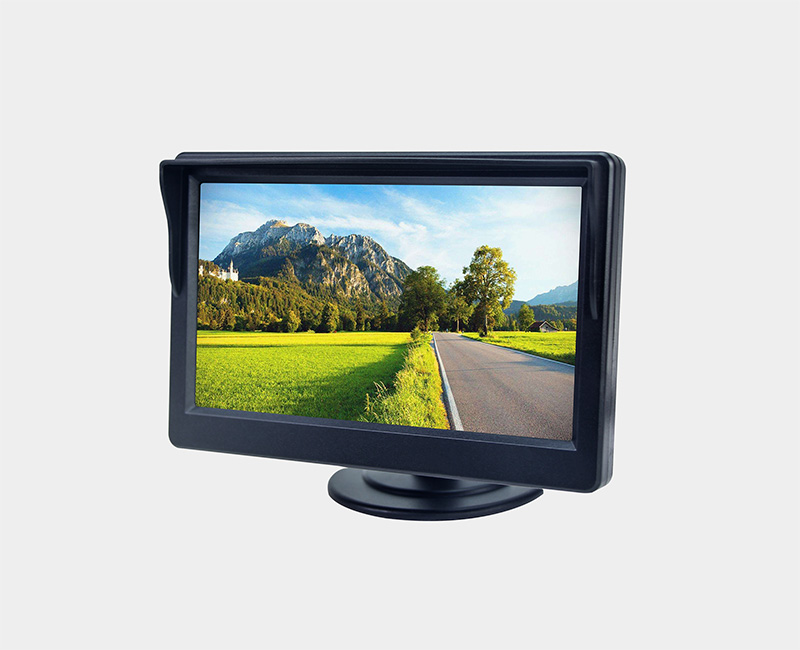

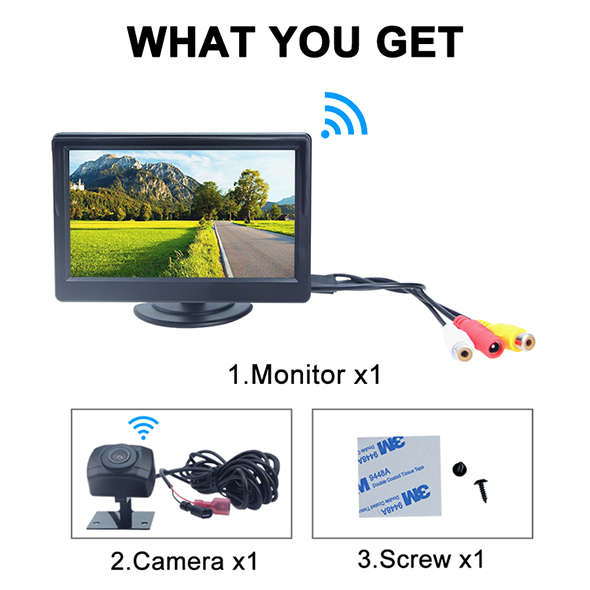

● 5" TFT LCD Monitor x 1

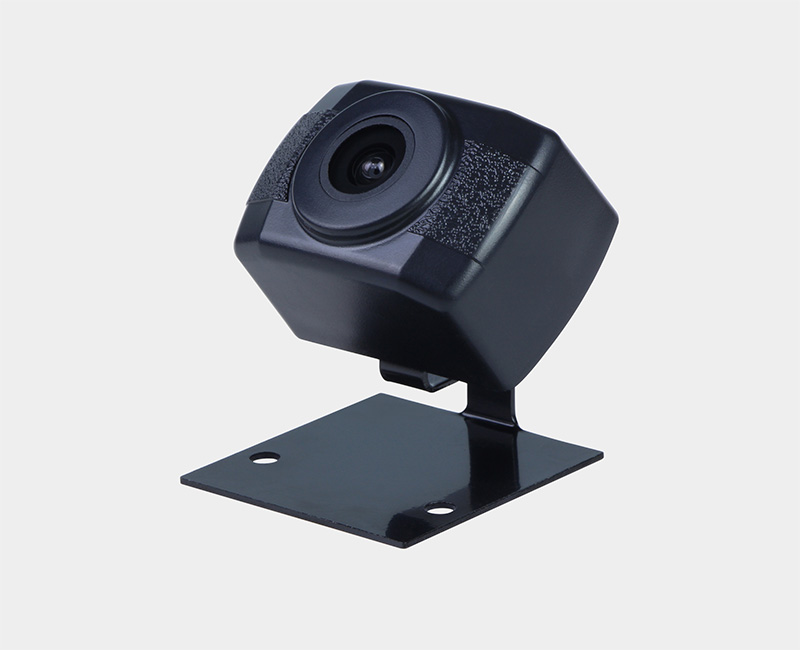

● Car Rear View Camera x 1
● Power cable x 2
● Manual x 1

PRODUCT DESCRIPTION

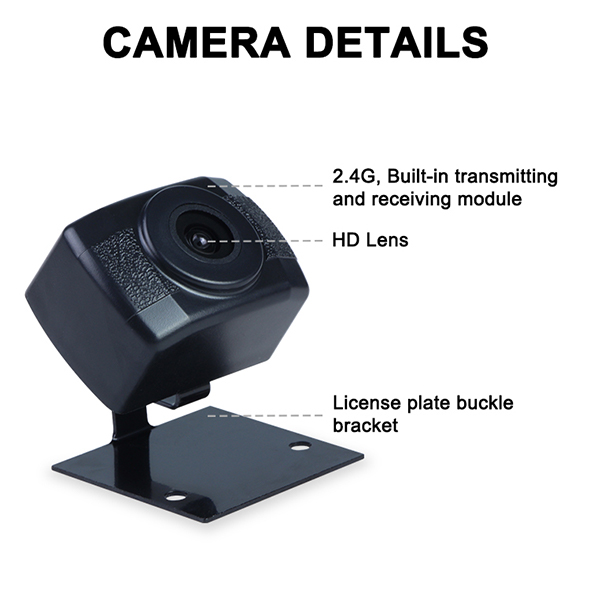

Cameraf Specification
Sensor	H65
Effective pixels	1280*720
Pixel size	3.0*3.0 um
Minimum illumination	0(IR ON)/5(IR OFF) Lux
Sensitive	4000 mV/Lux
Dynamic Range	72 dB
audio compression	ADPCM
video compression	MJPEG
operating frequency	MHz 2400－2483.5
Data bandwidth	4M(max) bps
Modulation/demodulation mode	GFSK
transmitting power	dBm 17(max)
Code match	Auto&Manual
Antenna impedance matching	50 Ω
Unobstructed Effective Range	>50m
operating voltage	DC 9~36 V
operating current	0.3@DC12V(max) A
operating temperature	–20～+65 ℃
storage temperature	–20～+85 ℃
operating humidity	15%~85% RH
storage humidity	5%~95% RH

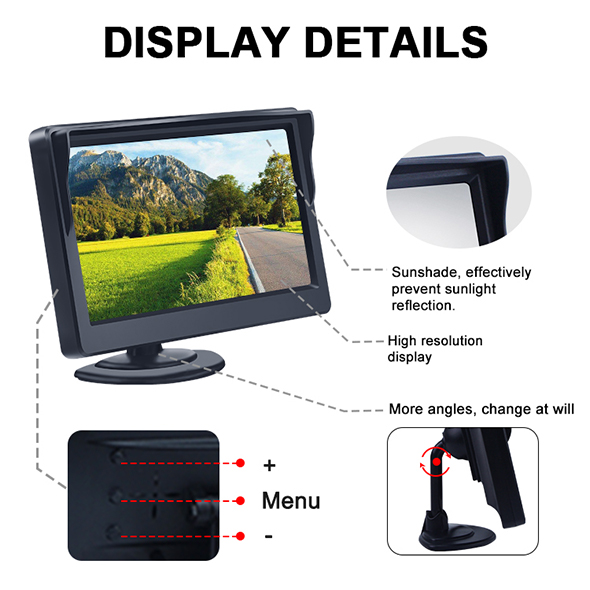

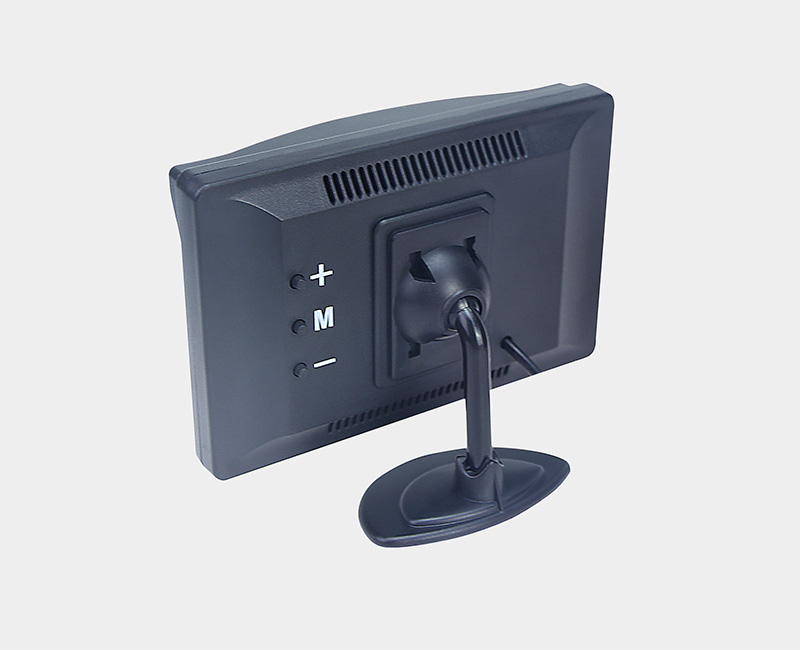

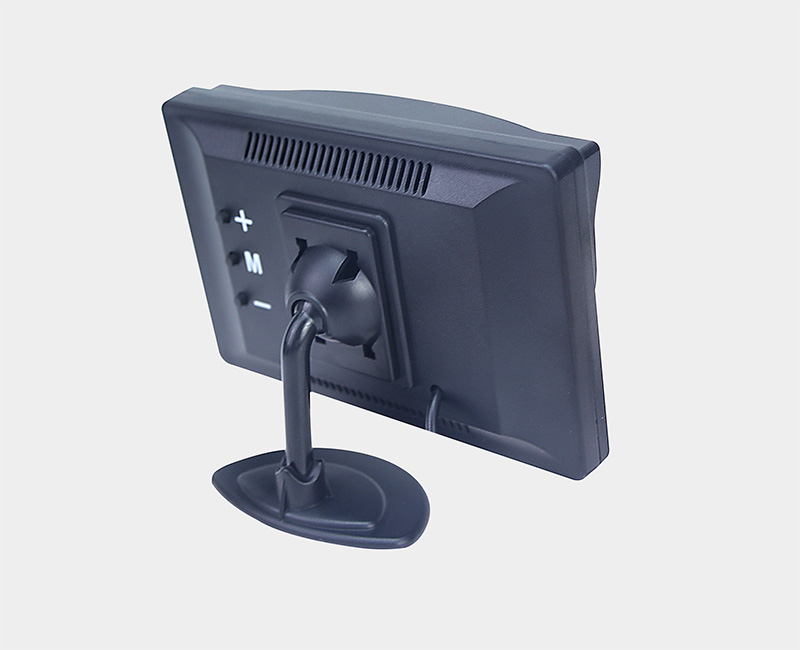

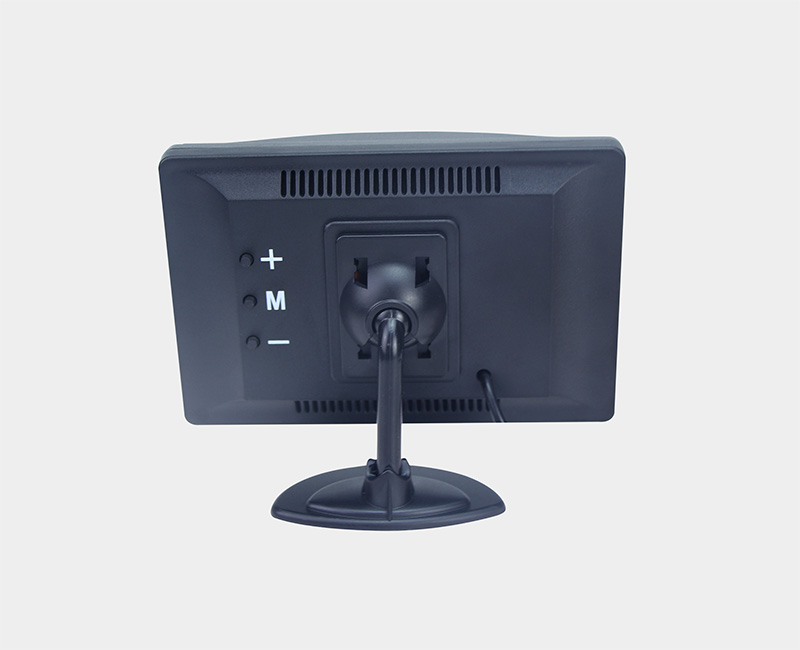

Monitor
Video Frame	25(max) fps
Transmittion resolution	640*480 Pixels
Screen resolution	480*272 Pixels
Screen brightness CD/M	2 ≥200
screen size	5 inch TFT
Video system	PAL/NSTC Auto
audio compression	ADPCM
video compression	MJPEG
operating frequency	2400－2483.5 MHz
Data bandwidth	4M(max) bps
Modulation/demodulation mode	GFSK
Receiving sensitiviy	-85(max) dBm
Code match	Manual
Data encryption	AES128 Bit
Antenna impedance matching	50 Ω
Unobstructed Effective Range	>300 m
operating voltage	DC 9~36 V
operating current	0.5@DC12V A
operating temperature	–20～+65 ℃
storage temperature	–20～+85 ℃
operating humidity	15%~85% RH
storage humidity	5%~95% RH
