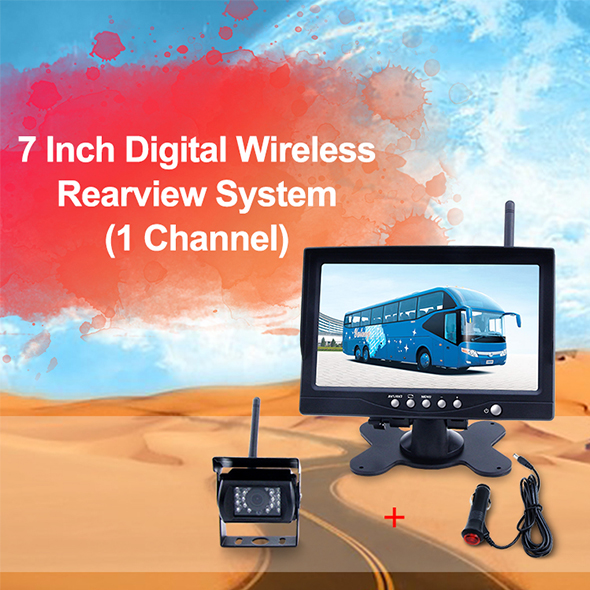

7inch Digital Wireless System

Model Number: BDW-708A

Color & Material: Black

Brief Introduction: Digital wireless rearview system

Get quotes

PRODUCT DESCRIPTION

Product Feature

Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit

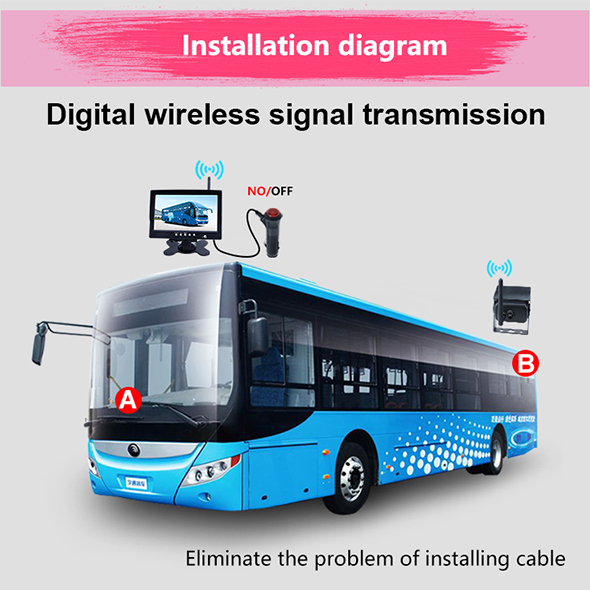

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end
The transmitter also includes a handy pass through for the power so you can connect it inline with your camera
Wireless transmitter with male phono plug and male 3.5mm power plug for supplying power to the camera
Wireless receiver with male phono plug for connection to monitor

Technical Specification

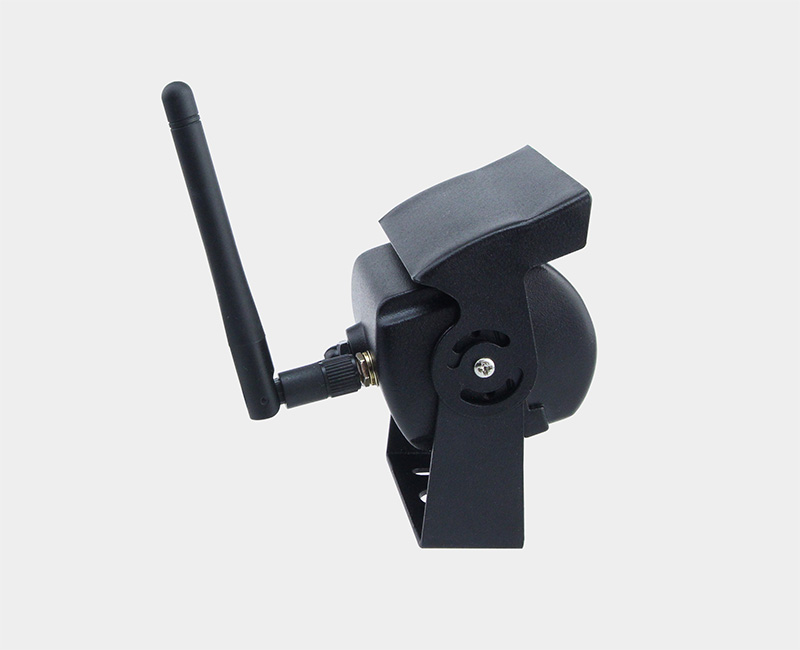

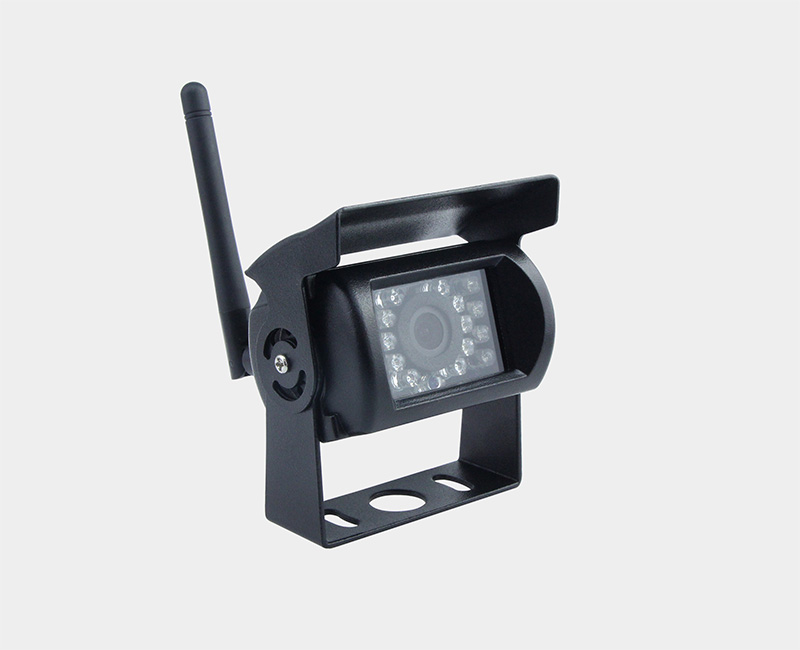

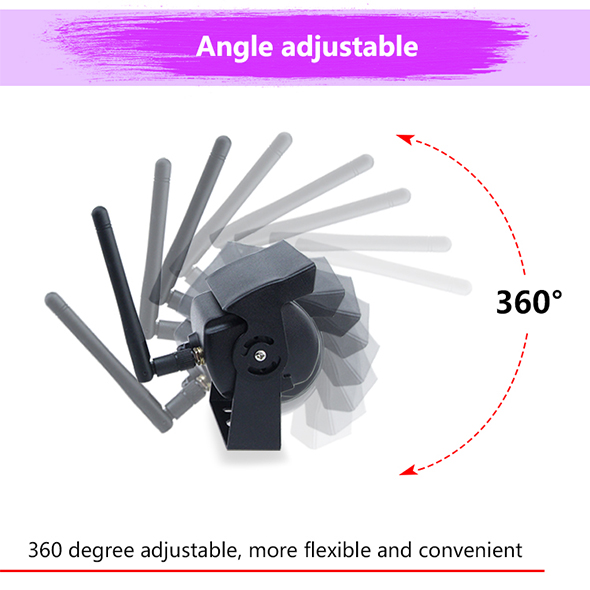

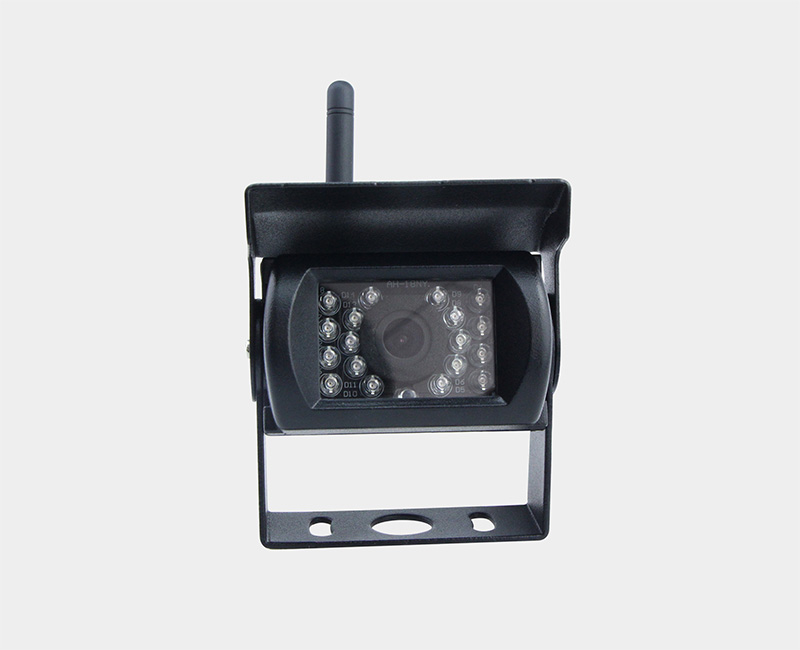

Night vision waterproof camera:

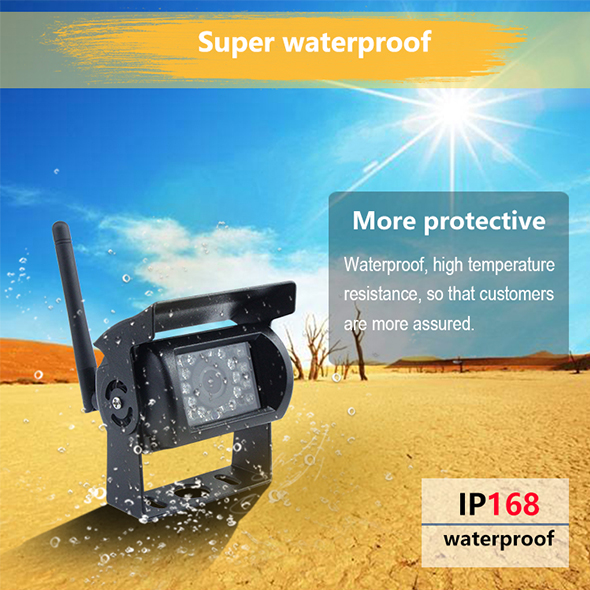

Waterproof grade: IP68
Resolution: 1296*732
Lens Angle: 170 degree
Minimum illumination: 0.3LUX, high sense of low light
Video Output: RCA interfaces, 1.0Vp-p, 75ohm
Sensor: 1/4inch CMOS (available with reference line)
S/N Ratio: More than 48db
Working voltage: DC12V (+/-10%)
Case Material: ABS plastic casing

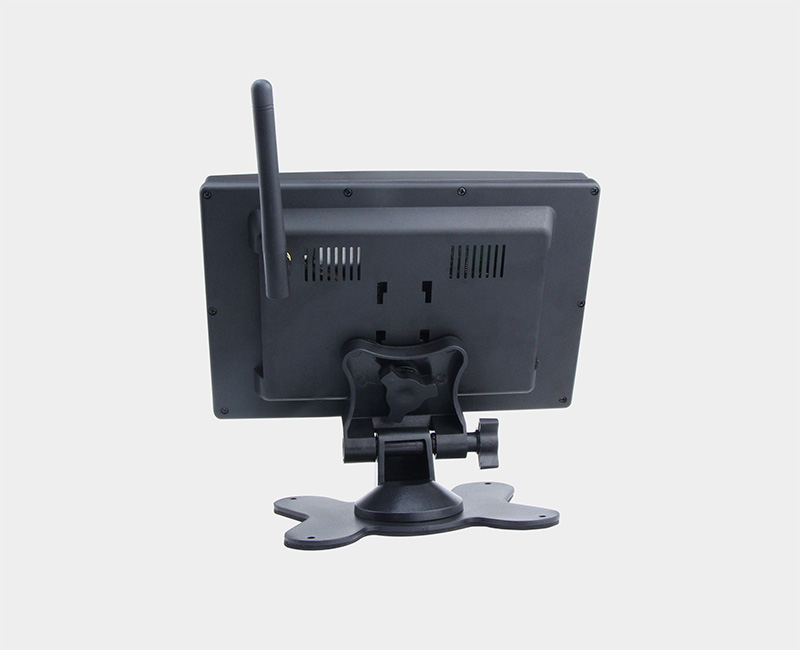

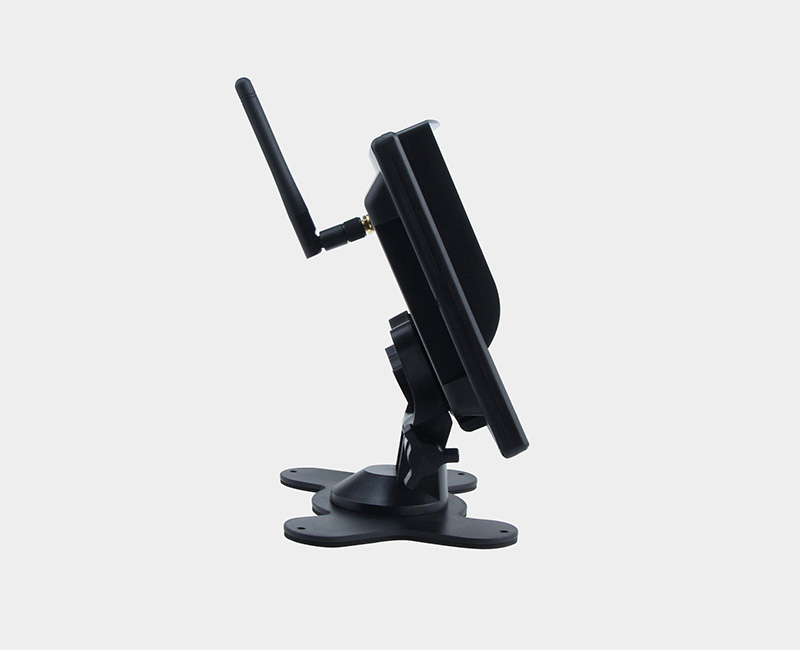

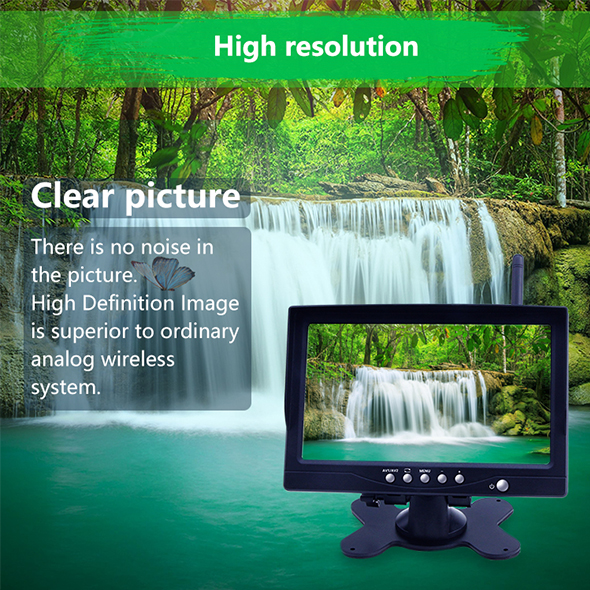

TFT LCD Monitor:
Screen Size: 7inch Fitment
Display Mode: 16:9
Video System: PAL / NTSC dual system automatically switches
Pixel: 800 x 480
Operating voltage: 12V-24V wide voltage
Rated power: 6W
1 AV input reversing automatic display
Contrast: 350:1
Working temperature:-10℃ to 65℃ )
Storage temperature:--20℃ to 85℃ )

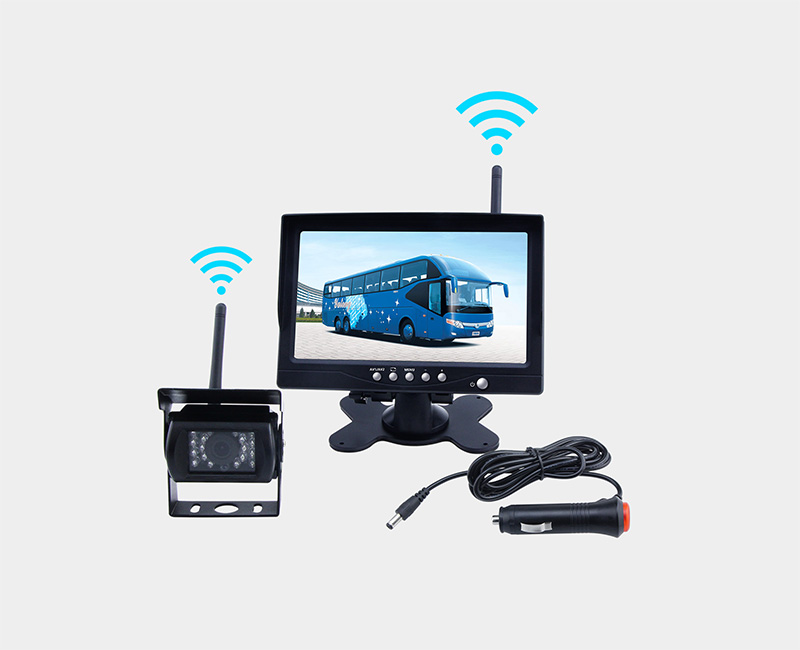

Accessories

1x 7" TFT LCD Monitor
1x Car Rear View Camera
1x Remote Controller
1x car charger
1x Holder
1x Frame
1x Manual
