READ MORECar Monitor
Model Number: BTM-700
Color & Material: Black
Brief Introduction: 7-inch digital color TFT LCD monitor
Get quotesProduct Feature

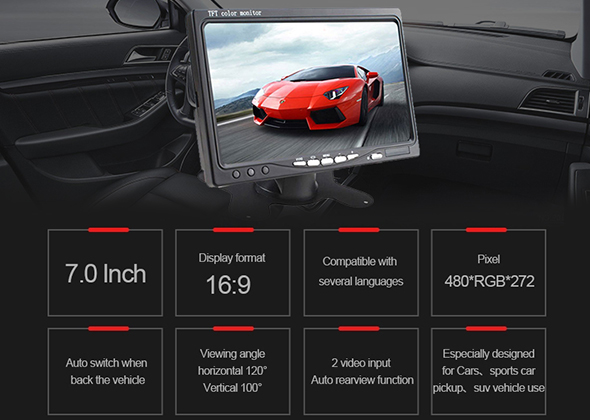

- 7-inch digital color TFT LCD monitor
- Dual video inputs, with remote control
- OSD menu and multi-languages available
- Stand alone placement, mount on dashboard
- Automatically switched on when Reversing
- Compatible to any rear view camera
- Screen Mode: Mirror Image / Horizontal Flip / Vertical Flip
Technical Specification
- Screen type:16:9
- Resolution: 800RGB x 480
- Power consumption: < 3W
- Power supply: DC9--32V
- Working temperature: -30~ +80 degrees
Accessories
- Monitor x 1
- Extension cable x 1
- 3m double sticker x 1
- Remote control x 1
- Manual x 1
- Color box x 1

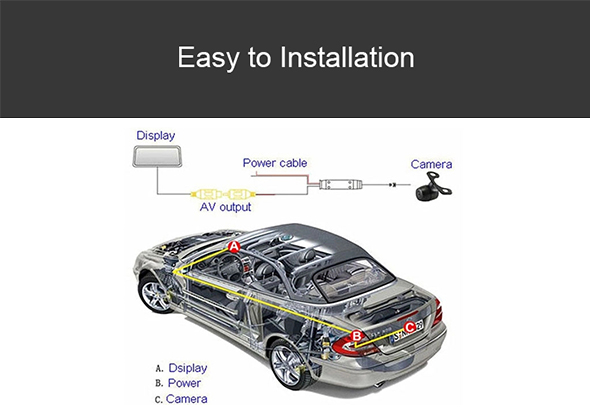

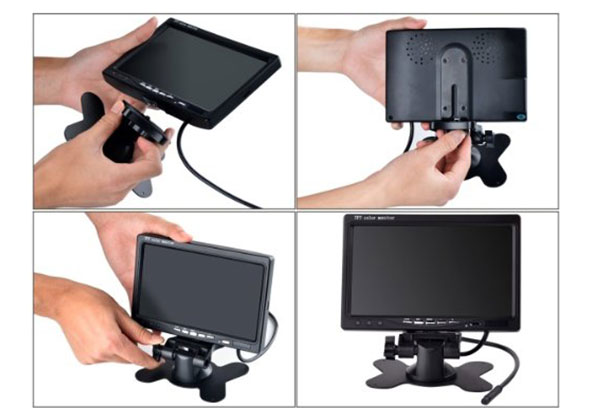

INSTALLATION
| Features | Stand alone dashborad monitor |
|---|---|
| Screen size | 7inch |
| Aspect Ratio | 16:9 |
| Resolution | 800*RGB*480 |
| Panel | TFT LCD (digital) |
| Brightness | 300cd/㎡;500cd/㎡ optional |
| OSD Menu | Yes |
| Connector | BMW & RCA & 4pin optional |
| Power Supply | DC 12V +/-10%, 24V optional |
| Storage Temperature | -30℃~80℃ |
| Operating Temperature | -20℃~70℃ |
| Operating Humidity | 0-96%RH |
| Signal System | PAL/AUTO/NTSC |
| Video inputs | AV1 to DVD etc., AV2 to back up camera |
| Power Consumption | < 3W |
| View Angle | U:50°/D:60°, L/R:60°° |
| Contrast Ratio | 350:1 |
