READ MOREHigh resolution CMD car camera
Model Number: BRC-200

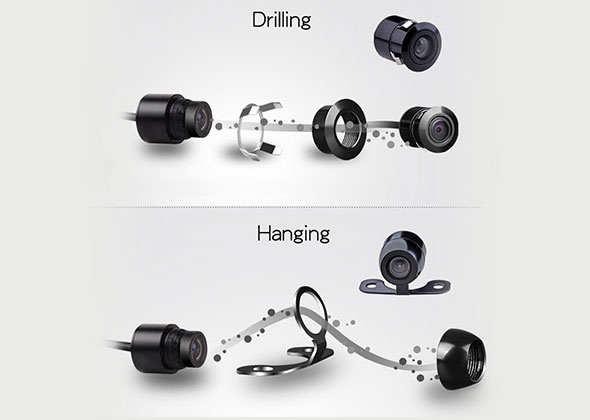

Brief Introduction: 18.5MM camera with two installations
Color: Black
Housing material: Plastic
Get quotesProduct Feature
- 18.5MM camera with two installations
- Image device: CMOS PC7080/PC1058
- Resolution: 420TV/520TV lines
- Waterproof: IP69K
- Minimum illumination: 0.01 lux
- RCA & BMW & Aviation connector optional

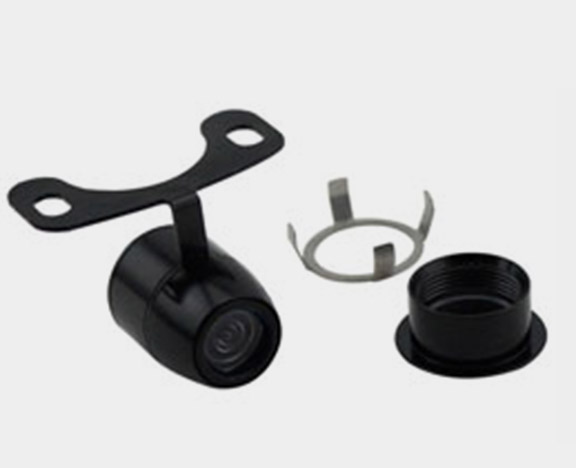

Accessories
- Camera x 1
- Manual x 1
- Color box x 1
- Drill x 1
- Sticker x 1

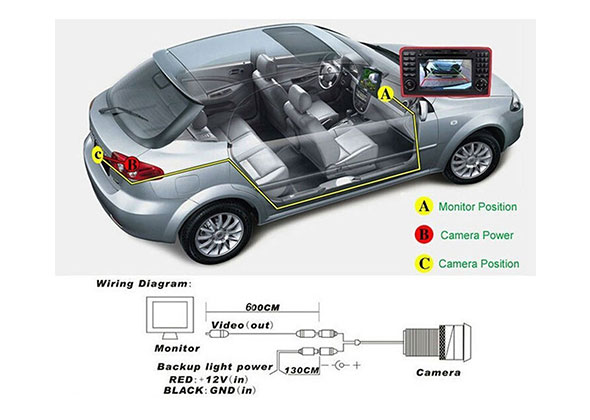

INSTALLATION
| Features | 18.5MM camera with two installations |
|---|---|
| Image device | Color CMD PC7080 &1058 |
| TV system | PAL/NTSC |
| Resolution | 420TV/520TV lines |
| Effective pixels | PAL: 720X 576 NTSC: 720X 480 |
| Waterproof | IP69K/IP68 |
| Minimum illumination | 0.01 lux |
| Connector | BMW & RCA & 4pin optional |
| Power Supply | DC 12V +/-10%, 24V optional |
| Storage Temperature | -30℃~85℃ |
| Operating Temperature | -20℃~70℃ |
| Operating Humidity | 15-65%RH |
| Housing Material | Plastic |
| AGC | Auto |
| BLC | Auto |
| S/N Ratio | More than 48db |
| Current Consumption | ≤130mA |
| Horizontal Angle | 110 +/-3° |
| Wide Angle | 170° |
